UN Rated Drums – Steel, Plastic & Fibre

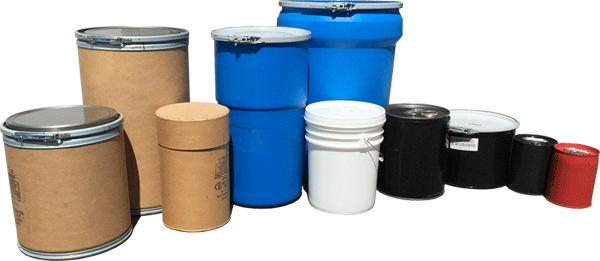

We stock a variety of UN rated drums: lined/unlined steel UN drums, as well as a variety of plastic and fibre drum options. Our UN rated drums are designed for a wide range of solids & liquid dangerous goods.  Both open head (1A2 & 1H2) UN drums and closed head / tight head (1A1 & 1H1) UN drums are available in various sizes & closures.  Our selection of UN rated drums comply with TDG, 49 CFR, IMDG Code, IATA, & ICAO.

For pricing, availability, and more info please contact us.

More info on UN packaging: UN Packaging FAQ

Steel UN Rated Drums

Closed-head (1A1) UN steel drums and open-head (1A2) UN steel drums are available in a variety of sizes; 1 gallon, 5 gallon & 55 gallon UN rated drums are most popular, but we can fulfill special requests for various UN ratings, sizes, styles, linings, and closures. Unlined UN steel drums are the most cost-effective. Phenolic lined & Epoxy-phenolic lined steel UN drums provide maximum protection from dangerous goods that are incompatible with carbon steel; whether a particular lining is suitable, depends on the chemical(s) you're shipping. For questions about chemical compatibility with our epoxy-phenolic or phenolic lined steel UN drums, please contact us.
steel UN drums, steel UN rated drums, 1 gal tight-head steel UN drums, 1A1 steel UN drums Canada

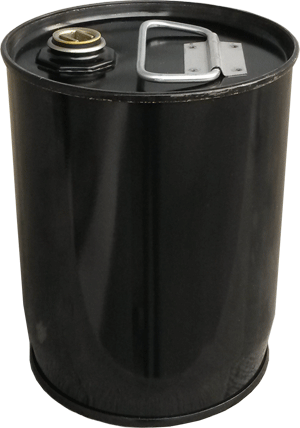

1 Gallon, Closed-Head Steel
UN Drum (1A1) – Black

Item Code: DR1A1-1EB

Capacity Style UN Drum Rating
1 Gal
(3.78 L)
Closed-Head 1A1/X1.5/250
Additional Specs
Material Carbon
Steel
Lining Epoxy
Phenolic
Bung Size 0.75″
Closure T200
Raised
Tri-Sure
Closure
Diameter 6.5″
Height 8.69″
More information
steel UN drum, steel UN drums alberta, 1 gallon tight head steel UN drum, 1 gal UN rated drum, 1 gal steel UN can
steel UN drum BC, tighthead UN rated drum, black steel tighthead UN drums alberta, 1 gallon fuel UN drum Canada, 1A1 steel UN drum

Our 1 gallon UN rated drums for shipping gasoline & jet-fuel are versatile and dependable. This version, featuring an epoxy-phenolic lining, is a staple in the petrochemical industry for good reason –

    ♦ raised flange & inverted design allows for complete fuel sample/impurity extraction:
    - producing a more representative sample;
     - more accurate test results;
    - up to 15 X less trapped liquid (more info)
    ♦ ideal for samples of gasoline, diesel, jet-fuel & other chemicals
    ♦ UN rated for packing group I, II, or III
    ♦ easily ships as:
    - limited quantity box (ground);
    - UN fibreboard box (ground, air or marine);
    - or separately as a steel UN rated drum (ground, air or marine)
    ♦ meets 95 kPa pressure test for air shipments of liquids (air approved)
    ♦ various colors & closures available (compare other styles)
steel UN drums, 1 gal red steel un drum, closed-head steel UN rated drums, 1 gal 1A1 steel UN drum USA

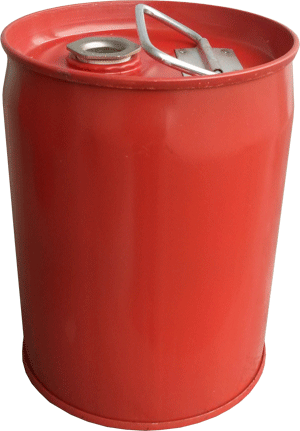

1 Gallon, Closed-Head Steel
UN Drum (1A1) – Red

Item Code: DR1A1-1E

Capacity Style UN Drum Rating
1 Gal
(3.78 L)
Closed-Head 1A1/X1.5/250
Additional Specs
Material Carbon
Steel
Lining Epoxy
Phenolic
Bung Size 0.75″
Closure S200
Hexagonal
Closure
Diameter 6.5″
Height 8.69″
More information
steel UN drum USA, red steel UN drums alberta, 1 gal UN rated drum, 1 gallon UN drum Canada steel UN drum BC, red steel UN drums alberta, closedhead UN rated drum, 1 gallon tight head steel UN drum Canada

Our 1 gallon UN rated drums for shipping gasoline & jet-fuel are versatile and dependable. This version, featuring an epoxy-phenolic lining, is a staple in the petrochemical industry for good reason –

    ♦ ideal for samples of gasoline, diesel, jet-fuel & other chemicals
    ♦ UN rated for packing group I, II, or III
    ♦ easily ships as:
    - limited quantity box (ground);
    - UN fibreboard box (ground, air or marine);
    - or separately as a steel UN rated drum (ground, air or marine)
    ♦ meets 95 kPa pressure test for air shipments of liquids (air approved)
    ♦ various colors & closures available (compare other styles)

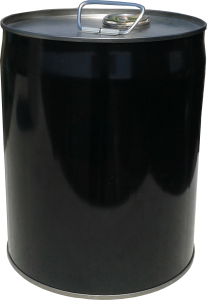

Steel UN drum, 5 gal UN rated drums, closed head 5 gal steel UN drum, tight head steel UN drum Canada, 1A1 steel UN drums USA

5 Gallon, Closed-Head Steel
UN Drum (1A1)

Item Code: DR1A1-5E

Capacity Style UN Drum Rating
5 Gal
(18.9 L)
Closed-Head 1A1/X1.2/350
Additional Specs
Material Carbon
Steel
Lining Phenolic
Closure 2" Bung
Diameter 11.25″
Height 13.5″
steel UN drums, UN rated drums, open head steel UN drums USA, 5 gal 1A2 steel UN drum, 5 gal lever lock steel UN drums Canada

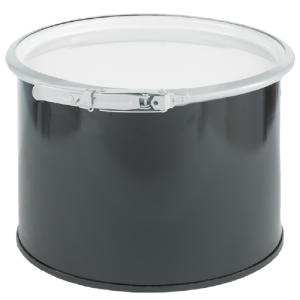

5 Gallon, Open-Head Steel UN Drum (1A2)

Item Code: DR1A2-5E

Capacity Style UN Drum Rating
5 Gal
(18.9 L)
Open-Head 1A2/X60/S
1A2/Y1.5/150
Additional Specs
Material Carbon
Steel
Lining Epoxy
Phenolic
Closure Lid with Leverlock
Diameter 14″
Height 8.9″
Steel UN drums, UN rated drums, closed head 1A1 Steel UN drums Canada, tight head steel UN drum, lined 55 gal steel UN drums

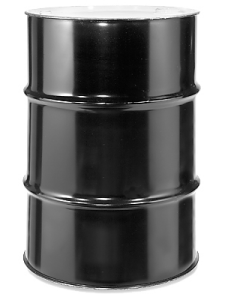

55 Gallon, Closed-Head Steel UN Drum (1A1)

Item Code: DR1A1-55E

Capacity Style UN Drum Rating
55 Gal
(207.9 L)
Closed-Head 1A1/X1.8/300
Additional Specs
Material Carbon
Steel
Lining Epoxy
Phenolic
Closure 2" Bung
Diameter 23″
Height 34.25″
Steel UN drums USA, UN rated drums, 1A2 Steel UN drums Canada, lined open-head steel UN drums USA

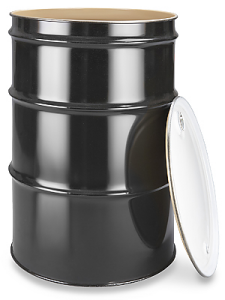

55 Gallon, Open-Head Steel UN Drum (1A2)

Item Code: DR1A2-55E

Capacity Style UN Drum Rating
55 Gal
(207.9 L)
Open-Head 1A2/Y1.6/130
1A2/X400/S
Additional Specs
Material Carbon
Steel
Lining Epoxy
Phenolic
Closure Lid with Bolt-Ring
Diameter 24″
Height 34.5″

Plastic UN Rated Drums

Plastic UN rated drums & Plastic UN jerricans provide a cheaper single UN packaging alternative to steel. Our open head (1H2) Plastic UN rated drums vary from 5 - 30 gallons; most feature lever lock lids for easy access. This open top style is designed for solids or inner packagings. Compatibility must be ensured between chemicals and HDPE plastic UN packaging (utilizing a UN rated drum doesn't ensure suitability). For liquid solvent-based chemicals & aliphatic hydrocarbons that can permeate & degrade plastics, our specially designed plastic UN jerricans are a great alternative. Made with barrier resin technology - which replaces fluorination - to safely transport a wide range of dangerous goods.  For more information on compatibility with our UN rated jerricans, please refer here
plastic UN drums, 5 gal open head plastic UN drums Canada, plastic UN rated drums, plastic UN pail Alberta, 5 gal 1H2 plastic UN pail

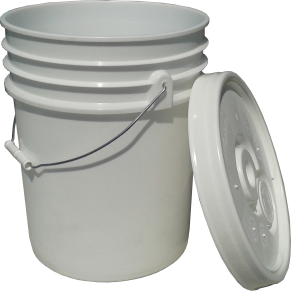

5 Gallon, Open-Head Plastic UN Drum (1H2)

Item Code: DR1H2-5

Capacity Style UN Drum Rating
5 Gal
(18.9 L)
Open-Head 1H2/Y1.5/30
Additional Specs
Material HDPE
Closure Lid with Spout
Diameter 12.31"
Height 14.5″

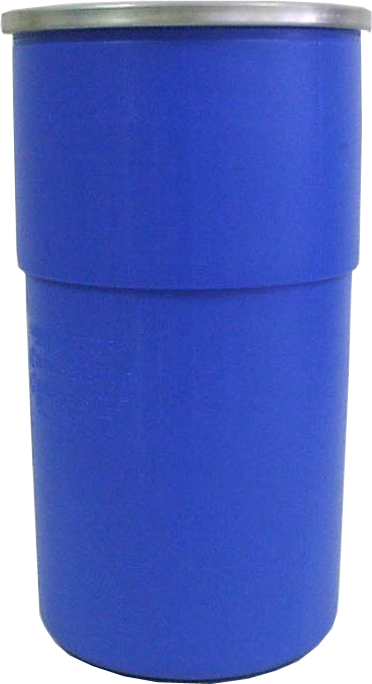

Plastic UN drums, 14 gal plastic UN drums Canada, plastic UN rated drums, open head leverlock plastic UN drums Ontario

14 Gallon, Open-Head Plastic UN Drum (1H2)

Item Code: DR1H2-14

Capacity Style UN Drum Rating
14 Gal
(53 L)
Open-Head 1H2/X65/S
Additional Specs
Material HDPE
Closure Lid with side lever lock
Outside Diameter 14.9"
Height 26.3″
Total Weight 8.2 lbs
Plastic UN drums, 30 gal open-head plastic UN drums Canada, openhead UN rated drums, lever lock 1H2 Plastic UN drums

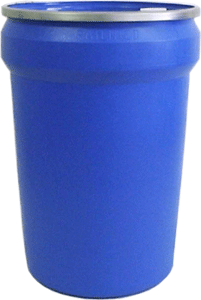

30 Gallon, Open-Head Plastic UN Drum (1H2)

Item Code: DR1H2-30

Capacity Style UN Drum Rating
30 Gal
(113.6 L)
Open-Head 1H2/X120/S
1H2/Y180/S
Additional Specs
Material HDPE
Closure Lid with side lever lock
Outside Diameter 17.2"
Height 30.1″
Total Weight 15.9 lbs

Fibre UN Rated Drums

Fibre UN rated drums provide shippers with flexibility when shipping articles, solids, or dangerous goods in inner packaging(s). Fibre (1G) UN rated drums are typically a lighter & cheaper than comparable sized steel & plastic drum options. Lever-lock lids make assembly and un-packaging a breeze. And despite their lean frame, our fibre drums are UN rated to safely carry some serious weight; perfect for heavy articles or batteries that exceed allowable gross weights for 4G & 4GV boxes.
fibre UN drums, fiber UN rated drums, 5 gal fibre UN drums Canada, 1G fiber UN drums USA

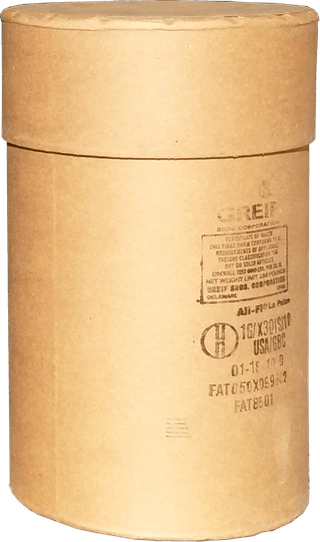

5 Gallon, Open-Head Fibre UN Drum (1G)

Item Code: DR1G-5

Capacity Style UN Drum Rating
5 Gal
(18.9 L)
Open-Head 1G/X30/S
Additional Specs
Material Fibre
Closure Fibre Cover
Outside Diameter 10"
Height 16″
Inside Diameter 9.5"

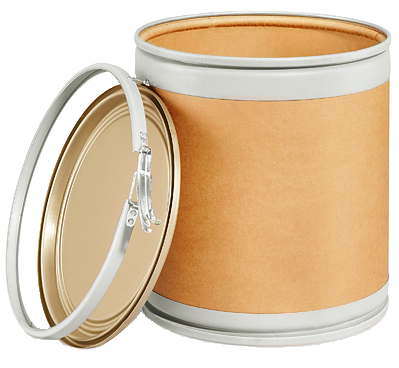

Fibre UN drums, 10 gal fibre UN drums Canada, 10 gal UN rated drums, 10 gal fiber UN drum USA, 10 gal open head fiber UN drum

10 Gallon, Open-Head Fibre UN Drum (1G)

Item Code: DR1G-10

Capacity Style UN Drum Rating
10 Gal
(37.9 L)
Open-Head 1G/X55/S
Additional Specs
Material Fibre
Closure Lid w/ lever lock
Outside Diameter 14.5"
Height 17″
Inside Diameter 14"
fiber UN drums, UN rated drums, 20 gal fibre UN drums Canada, 20 gal fiber UN drum, open head lever lock fiber UN drum

20 Gallon, Open-Head Fibre UN Drum (1G)

Item Code: DR1G-20

Capacity Style UN Drum Rating
20 Gal
(75.7 L)
Open-Head 1G/X65/S
Additional Specs
Material Fibre
Closure Lid w/ lever lock
Outside Diameter 16"
Height 25.5″
Inside Diameter 15.5"
Why Upward Packaging?
  • Competitive Prices
  • Custom/Special Requests Available
  • Large inventory; most items ship same-day
  • Serving Canada (BC Alberta Saskatchewan Manitoba) and USA (Alaska Washington Oregon California) – now shipping worldwide!

For pricing, availability, and special requests please contact us.
